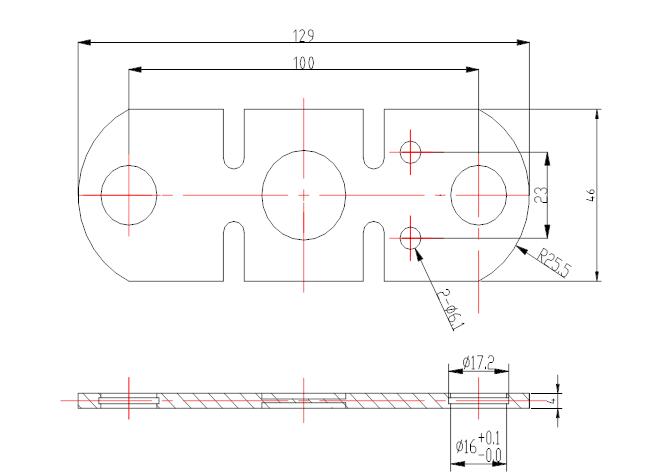

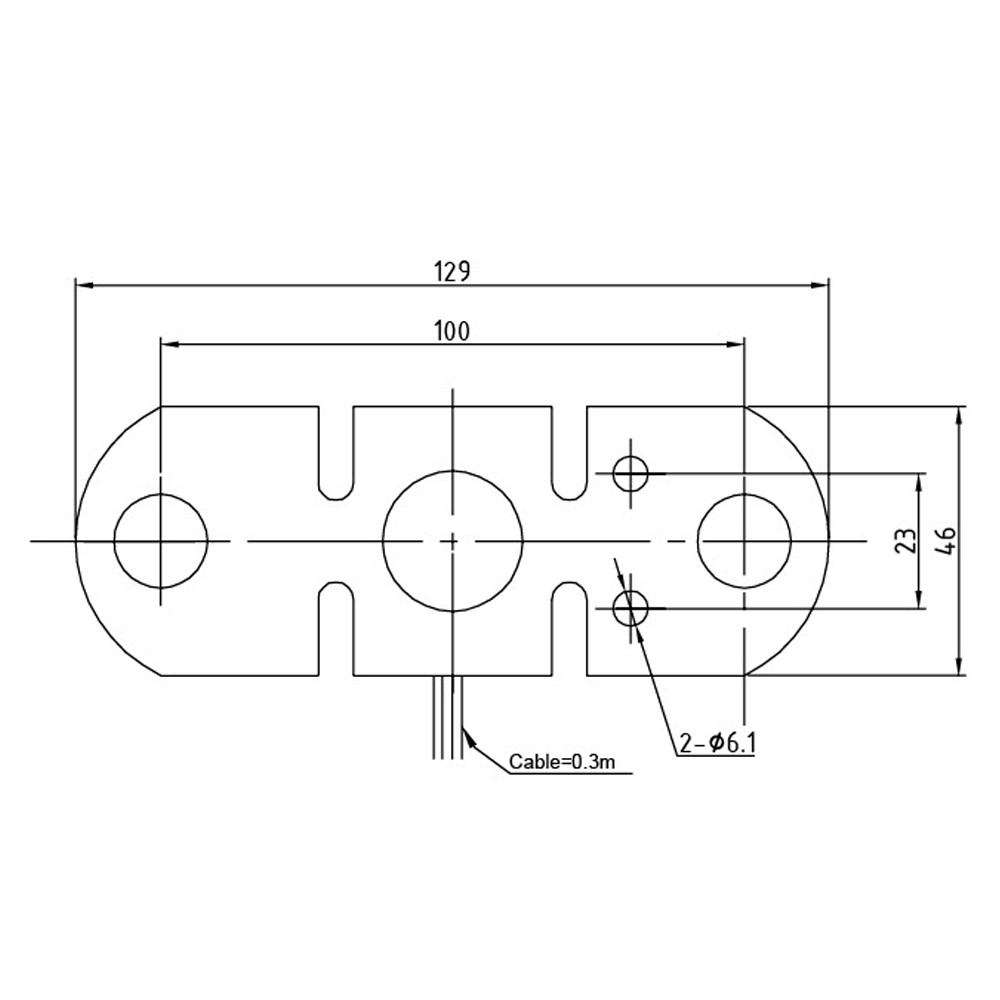

OS-145C Tension Load Cell

S-type compression sensor


Inquiry

Rated Capacity:30/50/75/100/150/200/300/500kg

Accuracy Class: D1

Rated Output: 1.5±0.2mV/V

Total error: ±0.05%F.S

Creep(30min): ±0.05%F.S

Input Resistance: 1000±10Ω

Output Resistance: 1000±2Ω

Operating Temperature: -10~+40℃

Safe Overload: 150%F.S

Destructive Load: 200%F.S

Excitation Recommend: 4~12VDC  Max:15VDC

Cable Length: 4 wires with screen

Exc+(red) Exc-(black) Sig+(green) Sig-(white)

Construction: Alloy steel,IP66

Application for:Crane scale , Testing equipment
