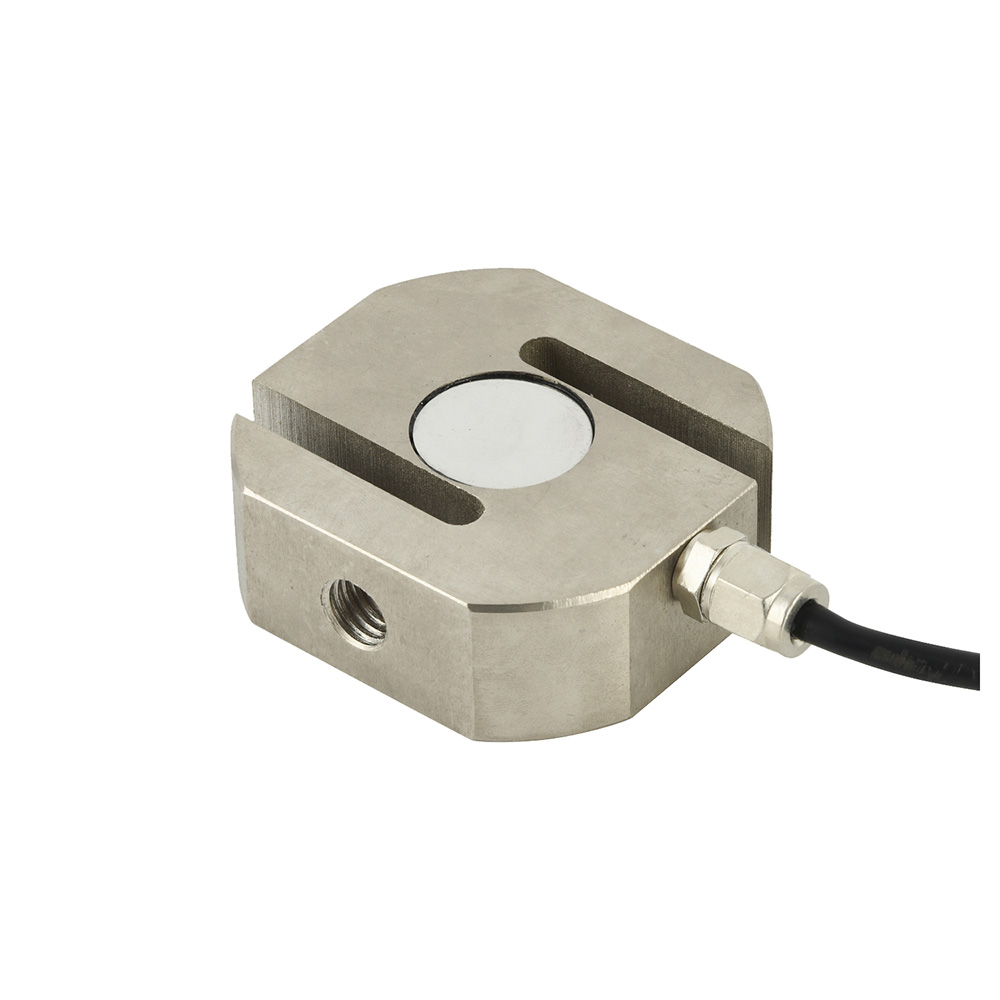

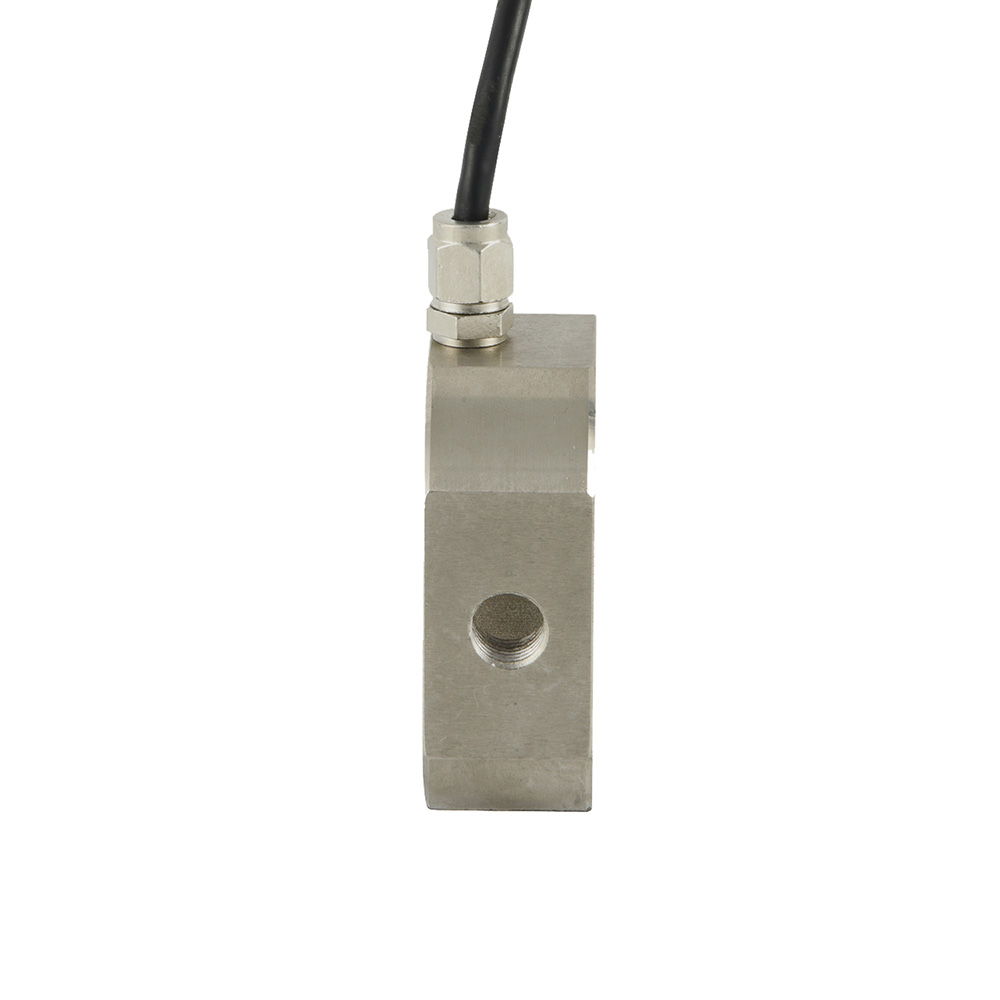

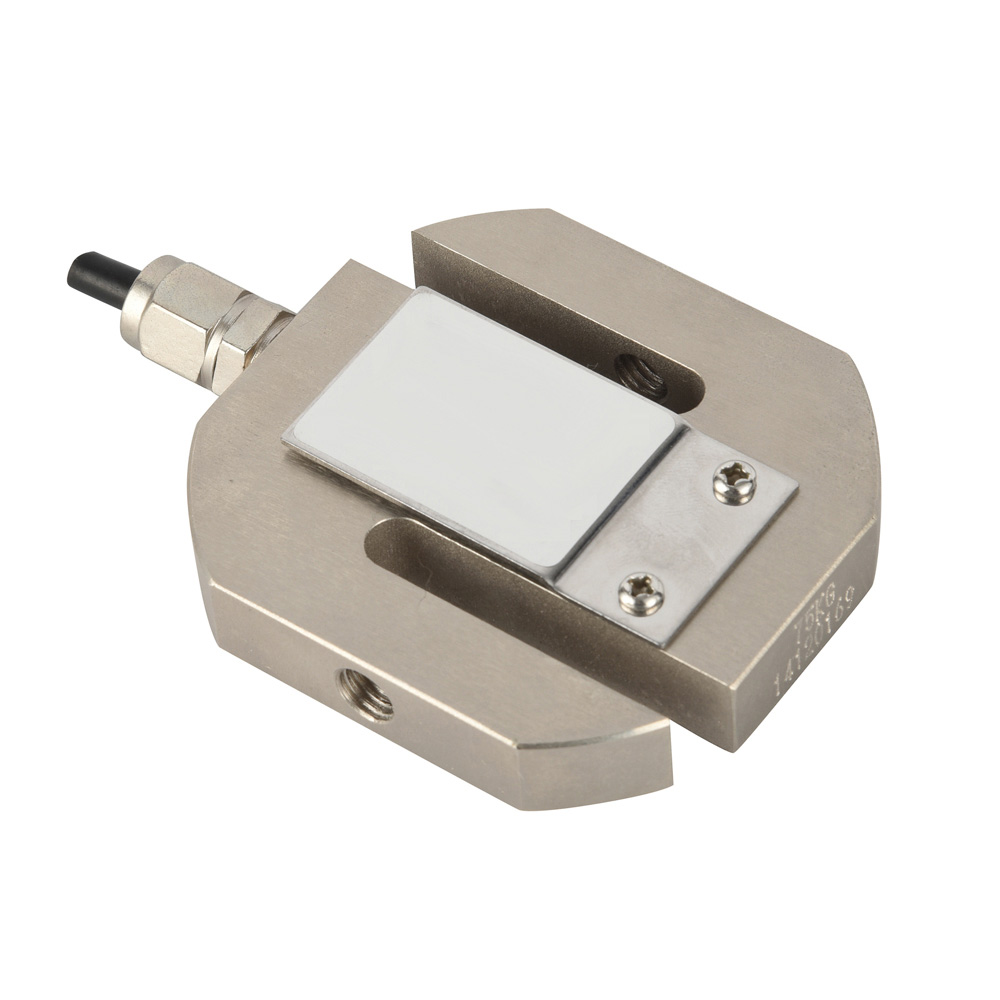

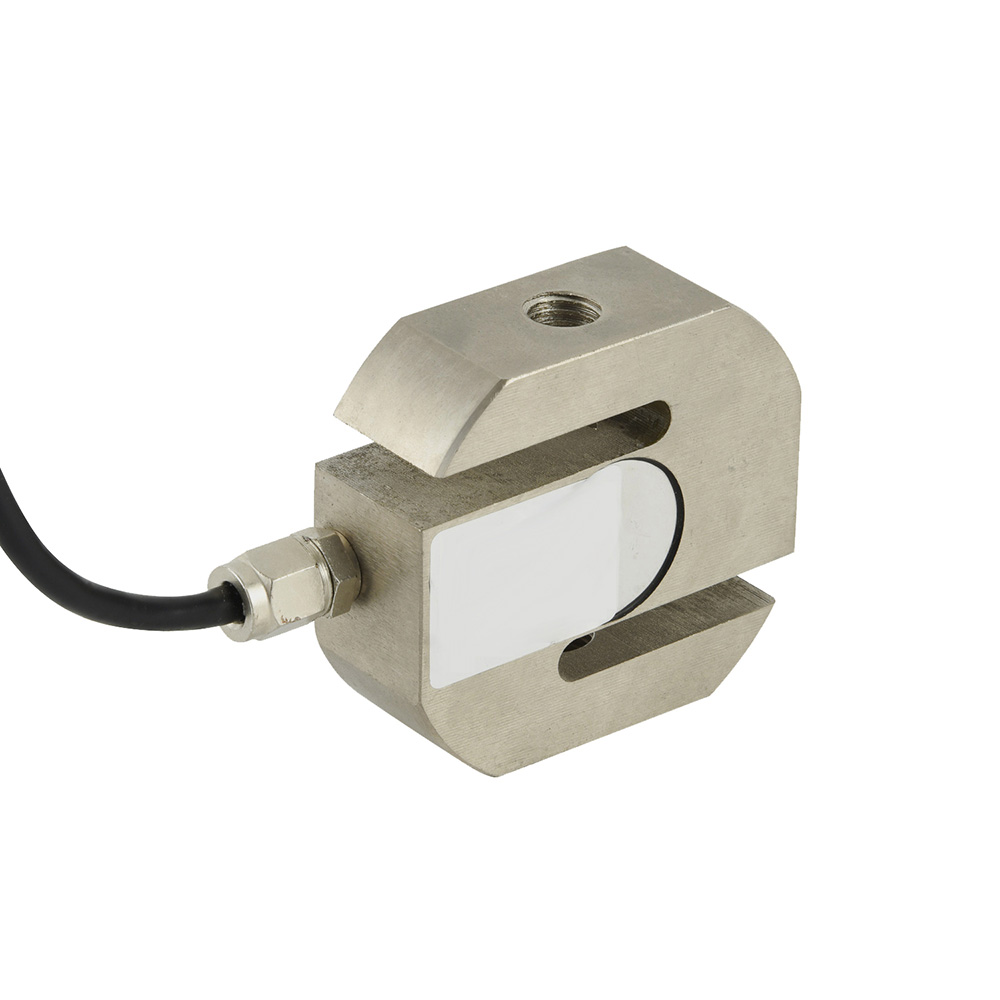

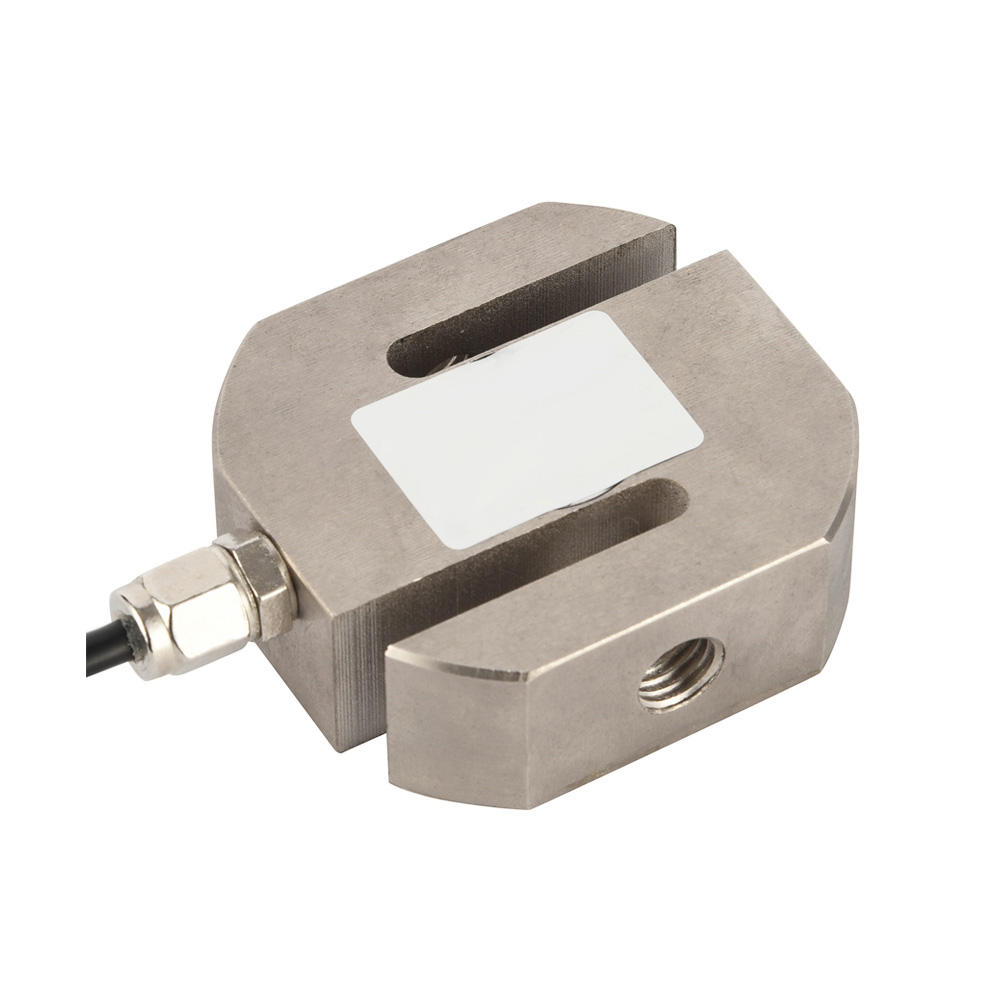

OS-301 Tension S type Load Cell

S-type compression sensor


Inquiry

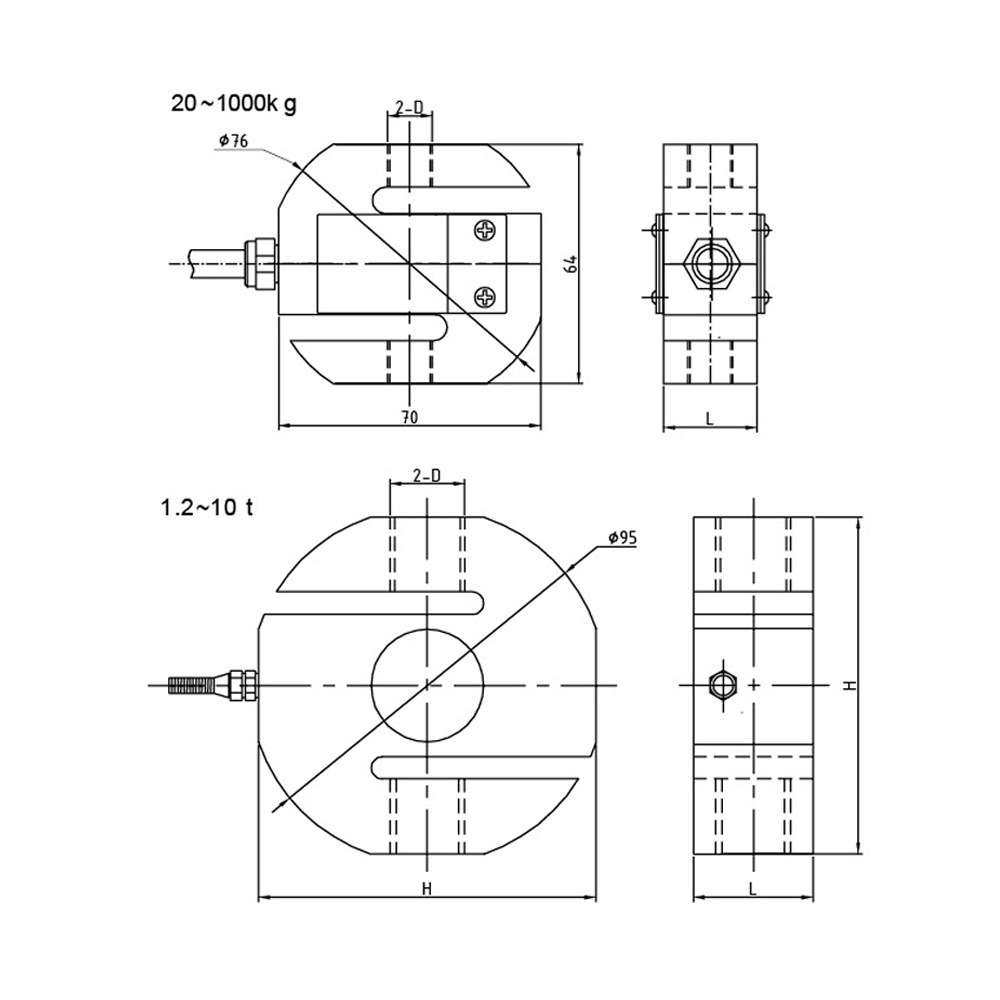

Rated Capacity: 20/30/50/75/100/150/200/250/300/500/700/1000kg

1.2/1.5/2/2.5/3/5/7.5/10t

Accuracy Class: C3

Rated Output: 2.0±0.002mV/V

Total error: ±0.02%F.S

Creep(30min): ±0.02%F.S

Input Resistance: 385±10Ω

Output Resistance: 351±2Ω

Operating Temperature: -10~+40℃

Safe Overload: 150%F.S

Destructive Load: 200%F.S

Excitation Recommend: 4~12VDC  Max:15VDC

Cable Length: 0.5~3m  4 wires with shield

Exc+(red) Exc-(black) Sig+(green) Sig-(white)

Construction: Alloy Steel or Stainless steel,IP67

Application for: crane scale,testing machine etc.
