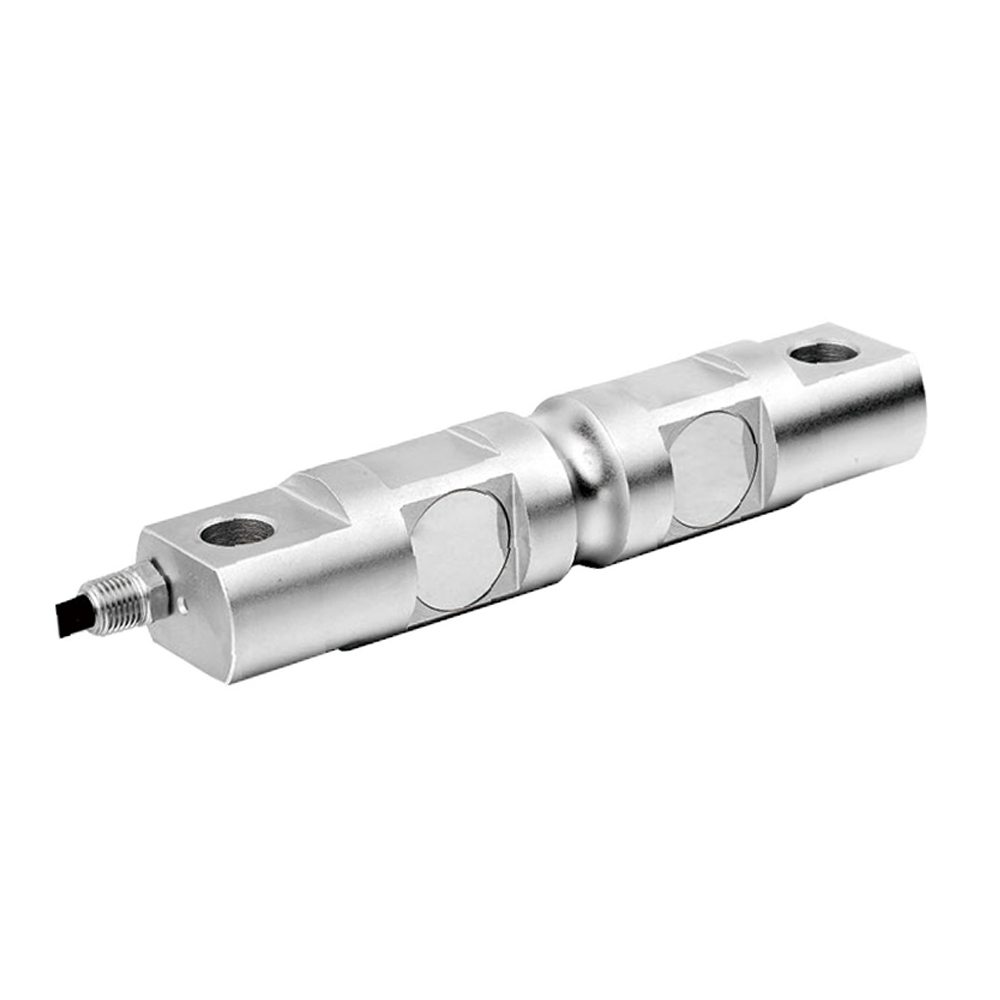

OS-403 Double End Shear Beam Load Cell

Bridge sensor


Inquiry

Rated Capacity: 5/10/20/25/30/40/50/60/75/100klb

Accuracy Class: Class Ⅲ

Rated Output: 3.0±0.003 mV/V

Total error: ±0.02%F.S

Creep(30min): ±0.02%F.S

Input Resistance: 760±10Ω

Output Resistance: 702±2Ω

Operating Temperature: -10~+40℃

Safe Overload: 150%F.S

Destructive Load: 300%F.S

Excitation Recommend: 4~12VDC  Max:15VDC

Cable Length: 8~12m  4 wires with shield

Exc+(red) Exc-(black) Sig+(green) Sig-(white)

Construction: Alloy steel or stainless steel,IP67

Application for: Weighing bridge,truck scale,

weighing module etc.
