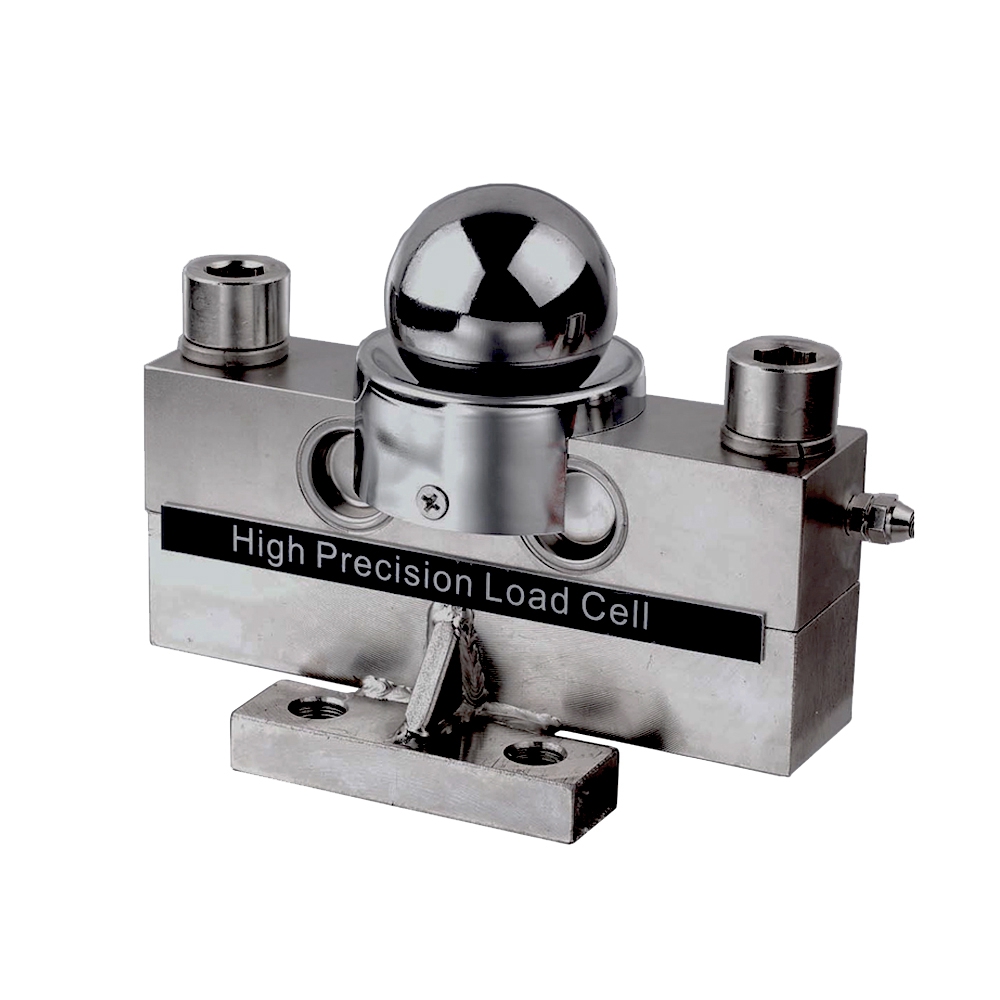

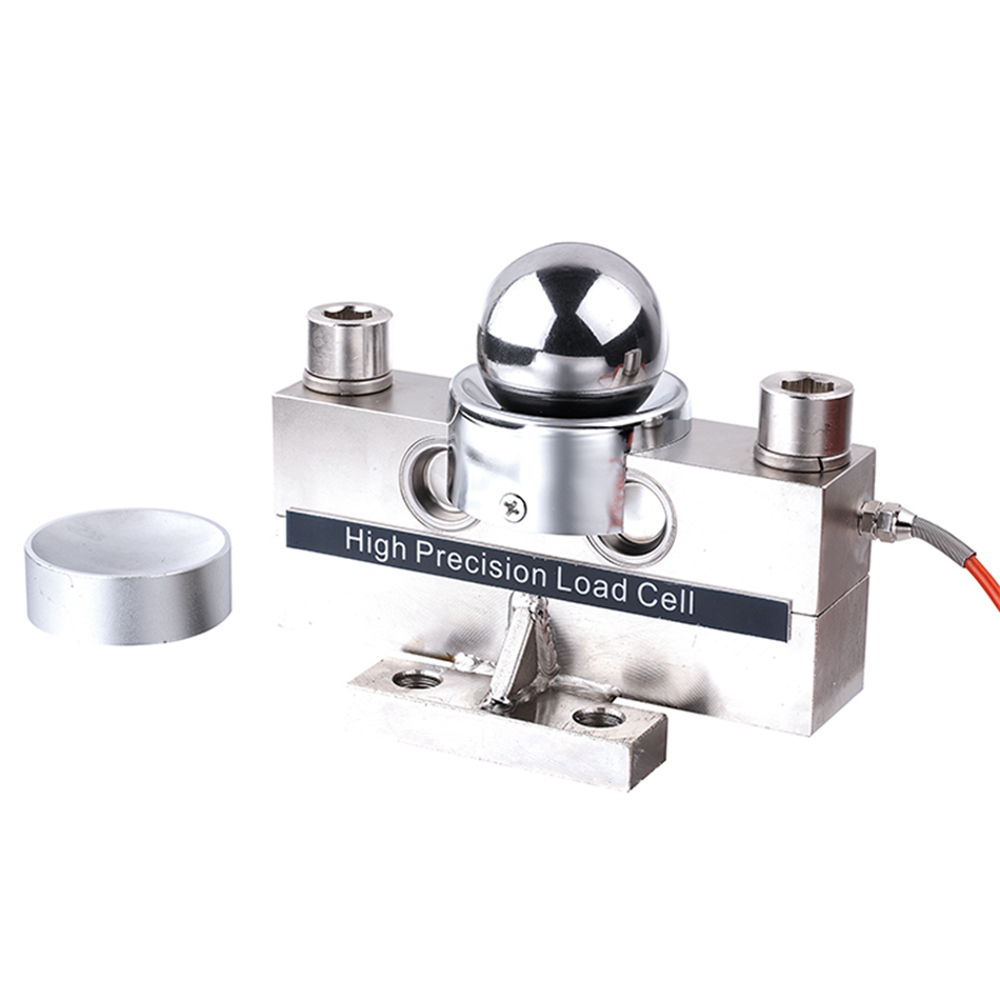

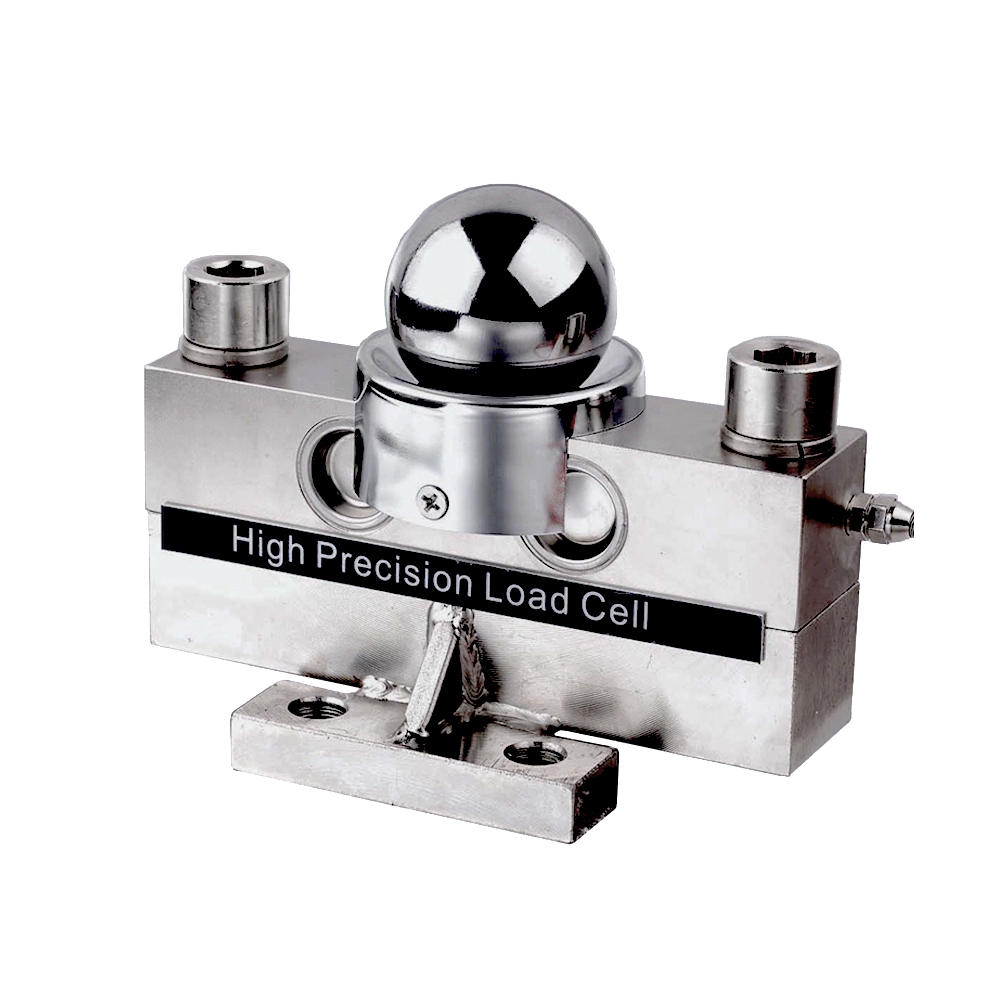

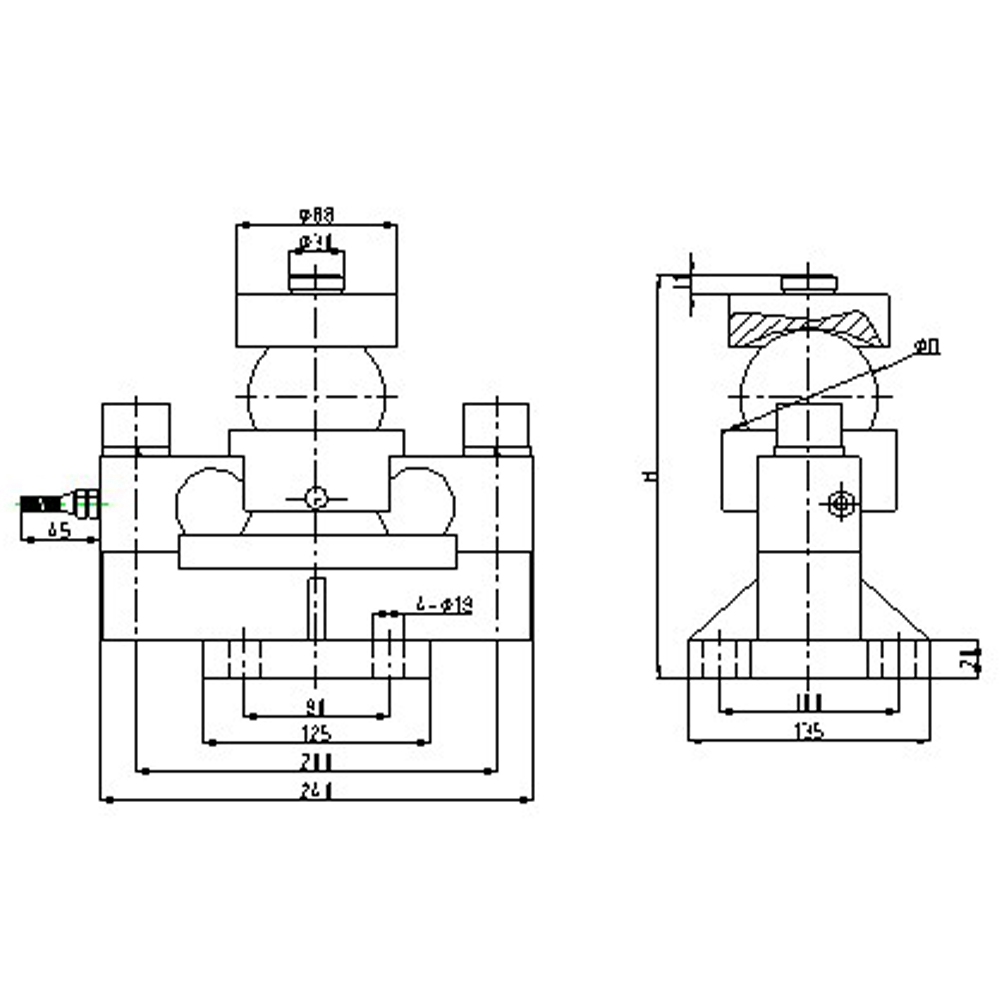

OS-401 Double End Shear Beam  Load Cell, using Weston bridge principle, alloy steel or stainless steel elastomer, with high precision strain gauge material which imported from European, using deep hole patch technology, imported glue. A high precision and high reliability weighing load cell is manufactured by fine process flow and high precision measuring equipment.

Process flowPatch (pre-cured, post-cured )→Bridge wire→ temperature compensation→Initial test→Sealing→Strain-hole laser weldingInitial test→ Standardized compensation→Retest→SealingCleaning glue Packing and storage


Rated Capacity: 10/15/20/25/30/40t

Accuracy Class: C3

Rated Output: 2.0±0.002mV/V

Total error: ±0.02%F.S

Creep(30min): ±0.02%F.S

Input Resistance: 760±10Ω

Output Resistance: 702±2Ω

Operating Temperature: -10~+40℃

Safe Overload: 150%F.S

Destructive Load: 300%F.S

Excitation Recommend: 4~12VDC  Max:15VDC

Cable Length: 8~16m  4 wires with shield

Exc+(red) Exc-(black) Sig+(green) Sig-(white)

Construction: Alloy steel or stainless stee,IP67

Application for: Weighing bridge,truck scale, railway scale etc.
