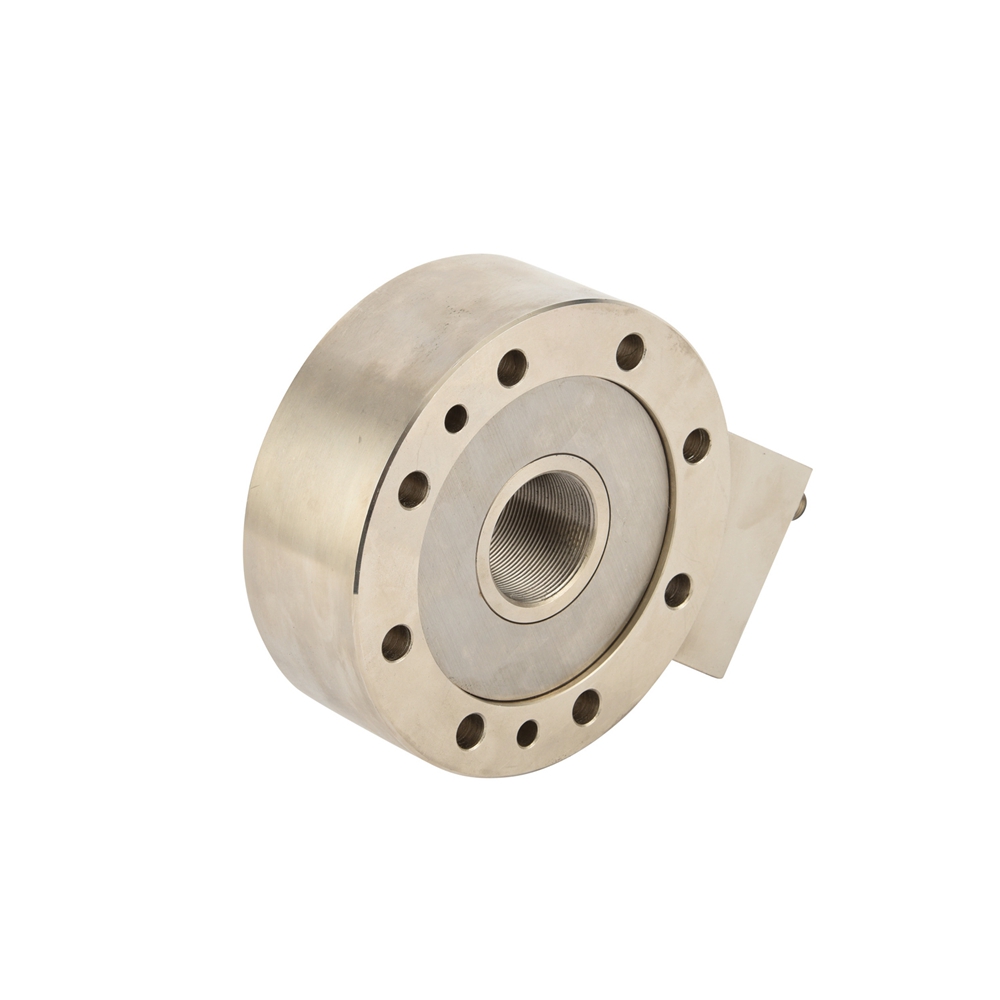

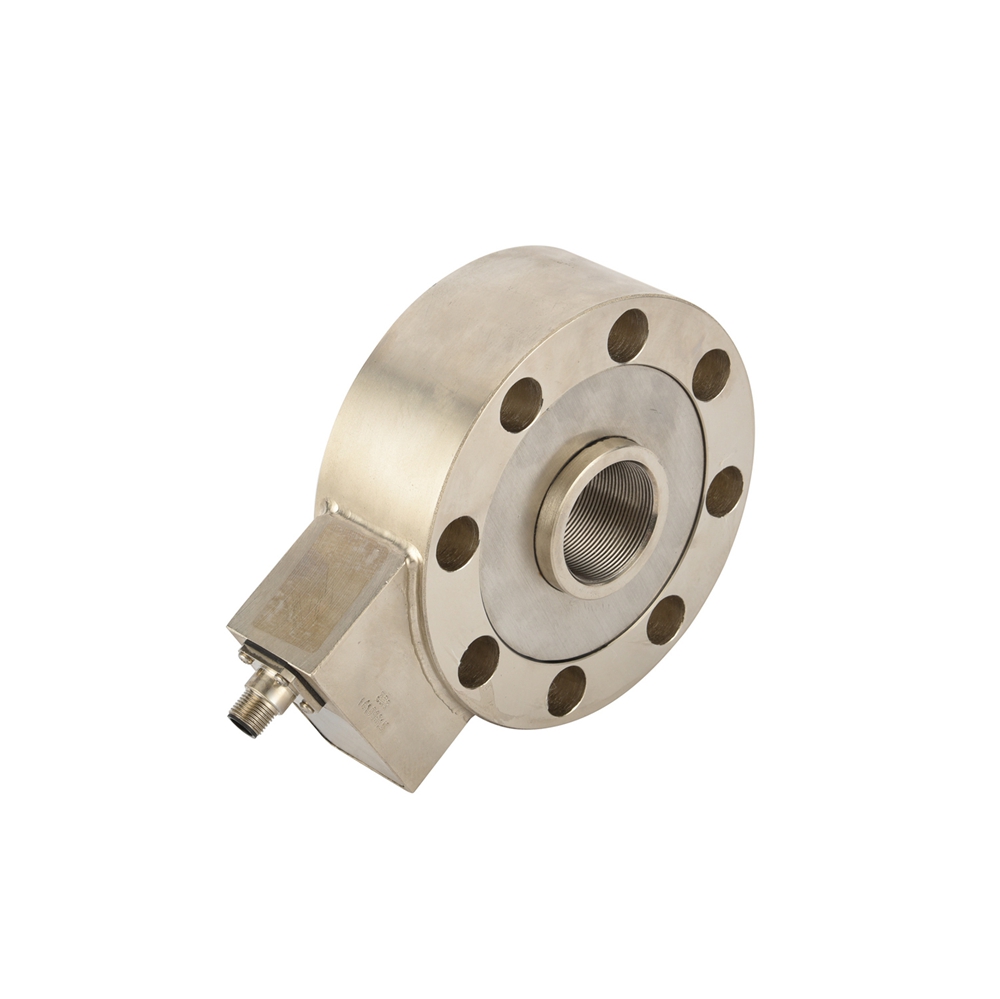

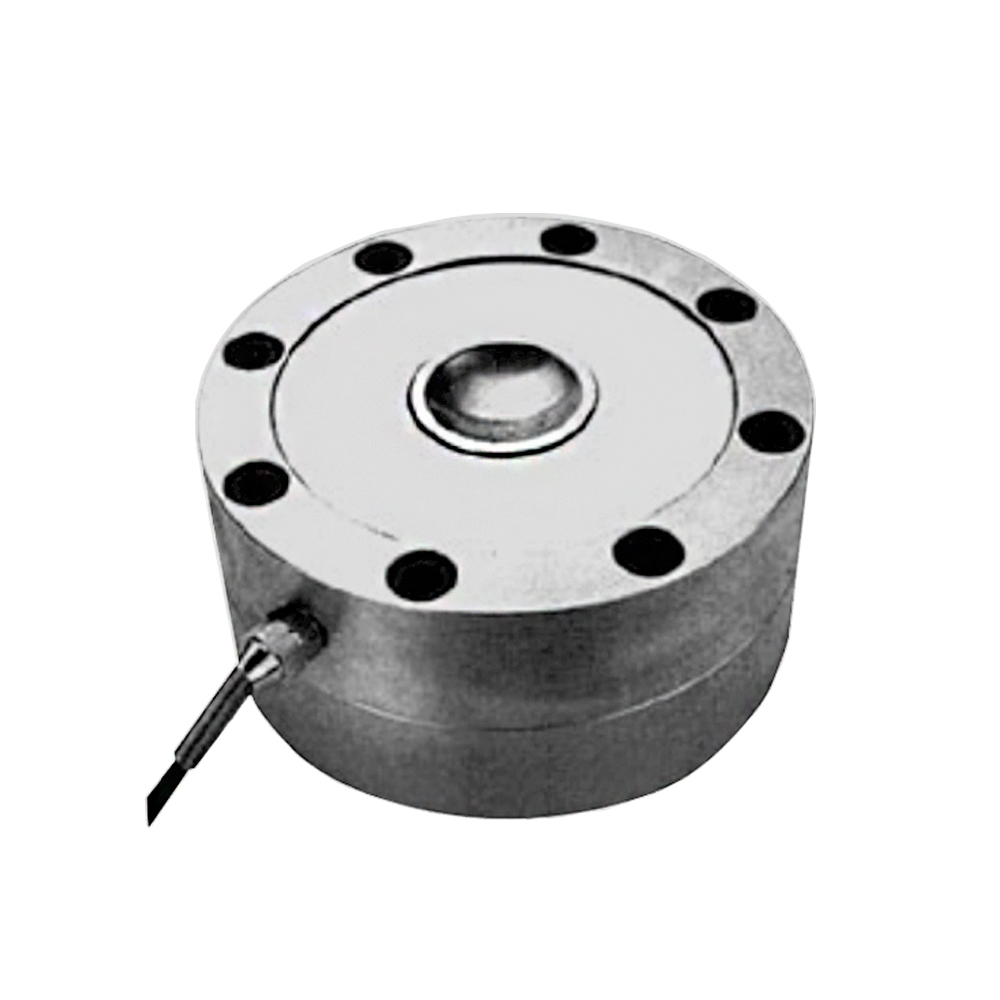

OS-205 Compression Load Cell

Spoke sensor


Inquiry

Rated Capacity: 10/20/25/30/40t

Accuracy Class: D1

Rated Output: 3.0±0.006mV/V

Total error: ±0.05%F.S

Creep(30min): ±0.05%F.S

Input Resistance: 385±10Ω

Output Resistance: 351±2Ω

Operating Temperature: -10~+40℃

Safe Overload: 150%F.S

Destructive Load: 200%F.S

Excitation Recommend: 4~12VDC  Max:15VDC

Cable Length: 12m  4 wires with shield

Exc+(red) Exc-(black) Sig+(green) Sig-(white)

Construction: Alloy Steel,IP67

Application for: hopper scale,silo scale,testing machine etc.
