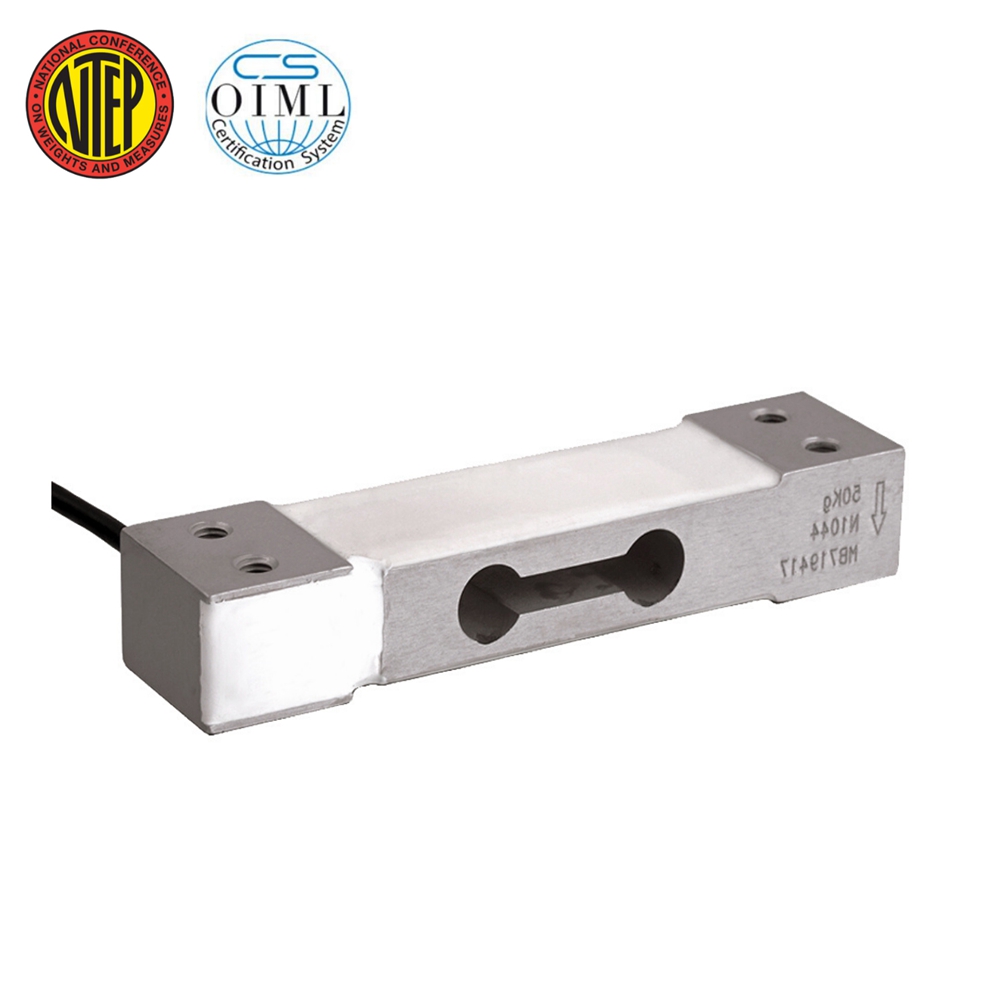

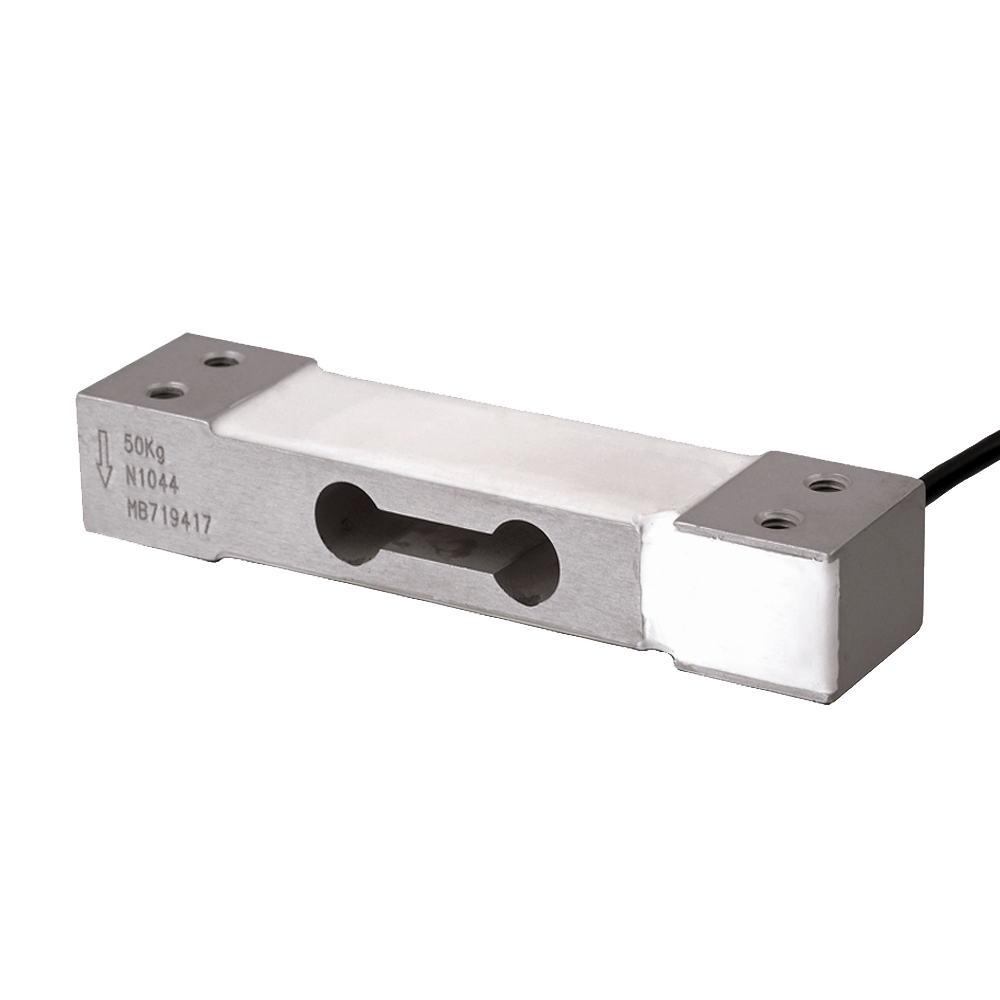

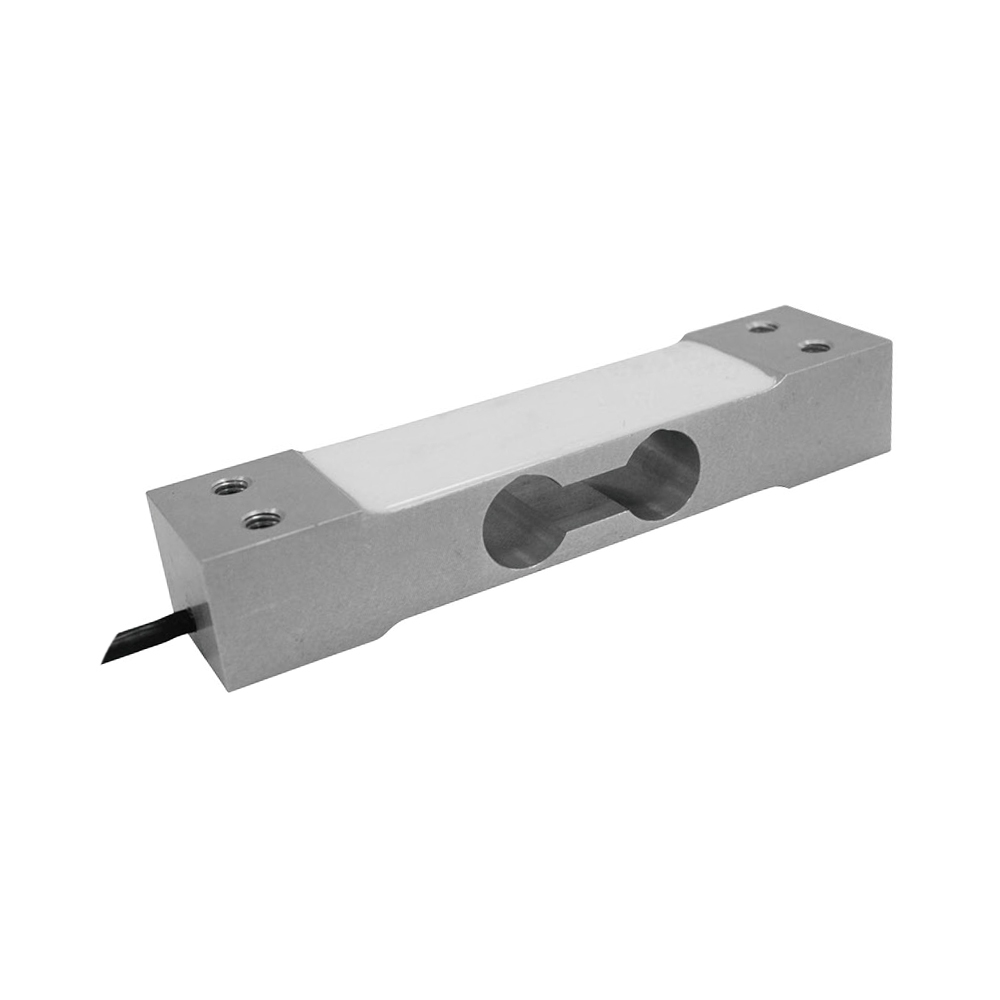

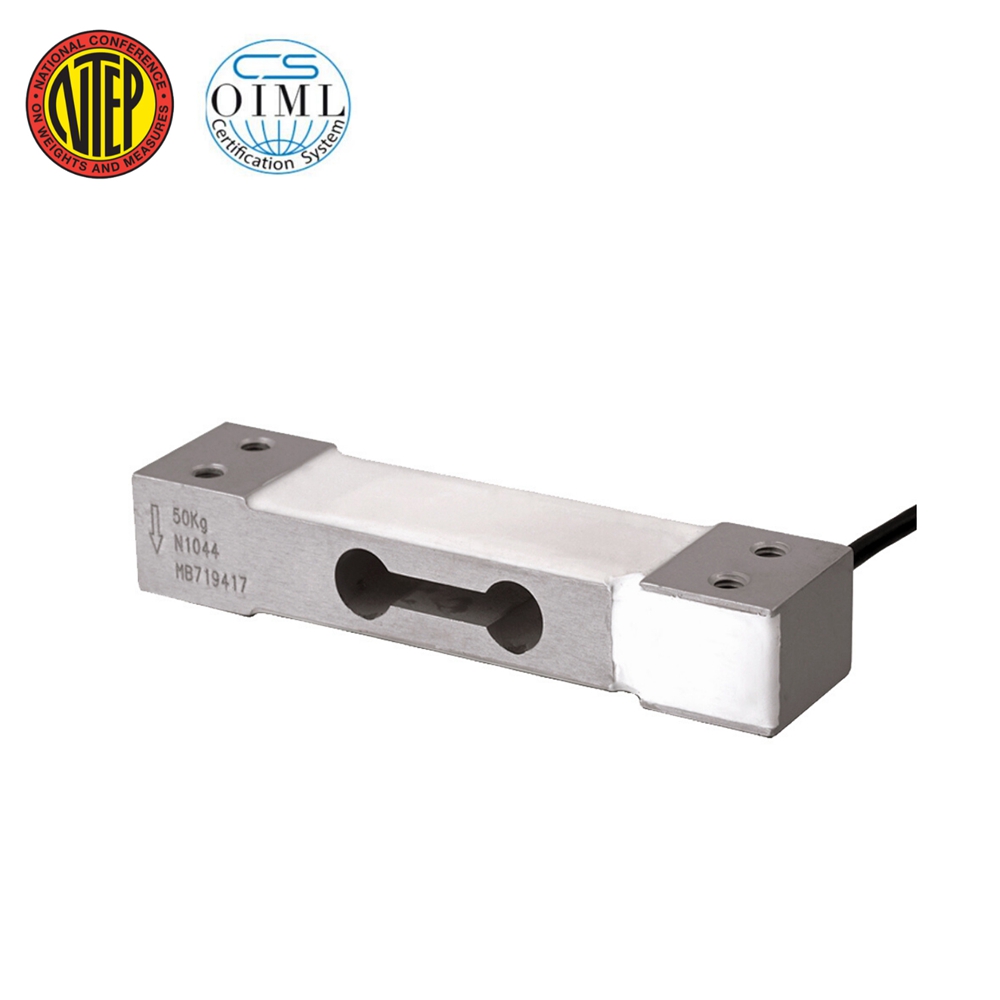

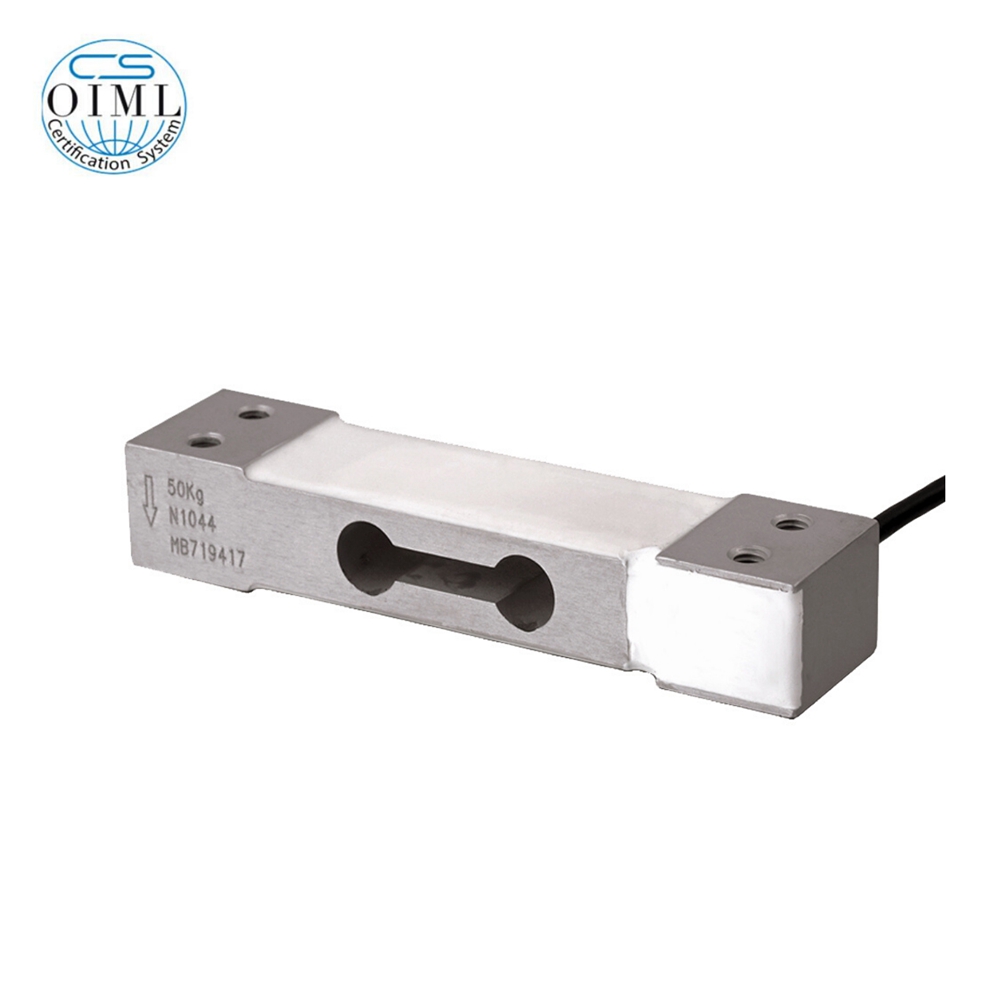

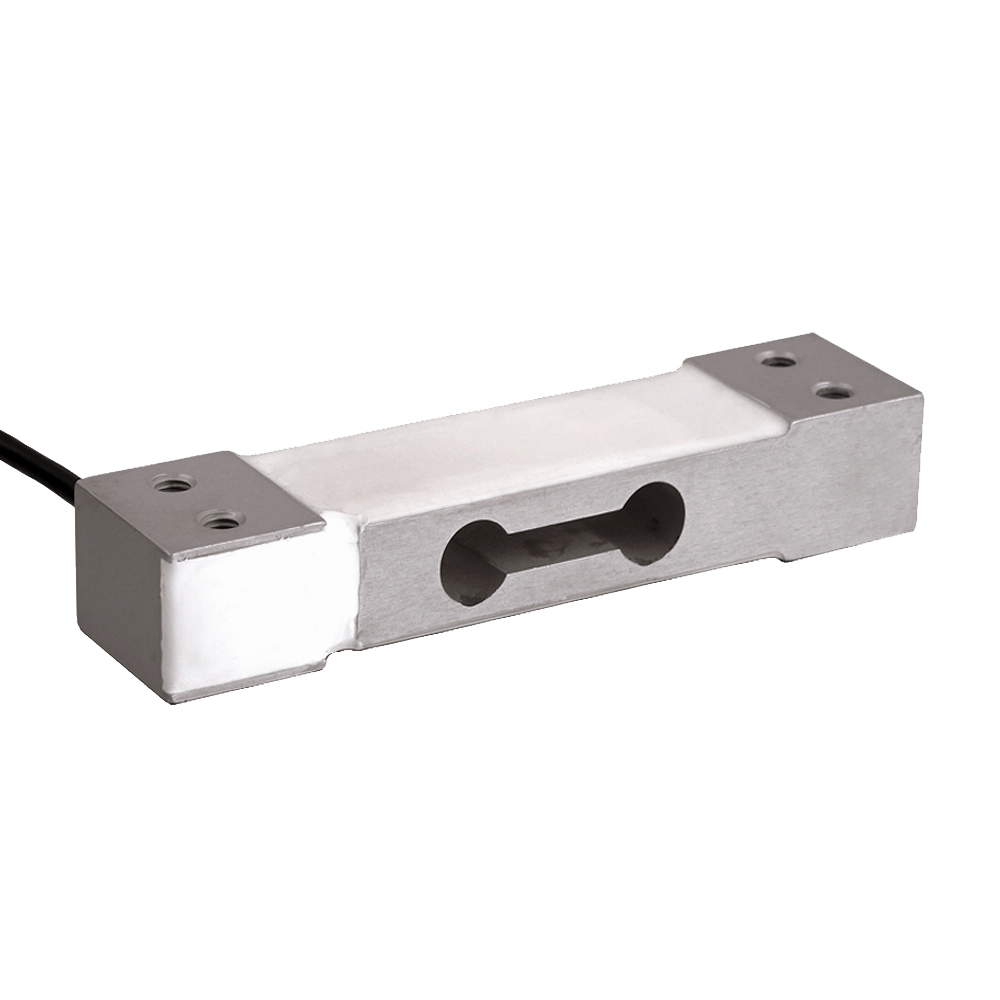

OS-606 Single point Load Cell

Single point load cell


Inquiry

Rated Capacity: 2.5/3/5/6/8/10/15/20/30/35/40/50kg

Accuracy Class: C3

Rated Output: 2.0±0.2mV/V

Total error: ±0.02%F.S

Creep(30min): ±0.016%F.S

Input Resistance: 406±10Ω

Output Resistance: 350±3Ω

Operating Temperature: -10~+40℃

Safe Overload: 120%F.S

Destructive Load: 150%F.S

Excitation Recommend: 4~12VDC  Max:15VDC

Cable Length: 3m   4 wires with shield

Exc+(red) Exc-(black) Sig+(green) Sig-(white)

Construction: Aluminum,IP65

Application for: Bench/Counting scales,check weighing etc.
