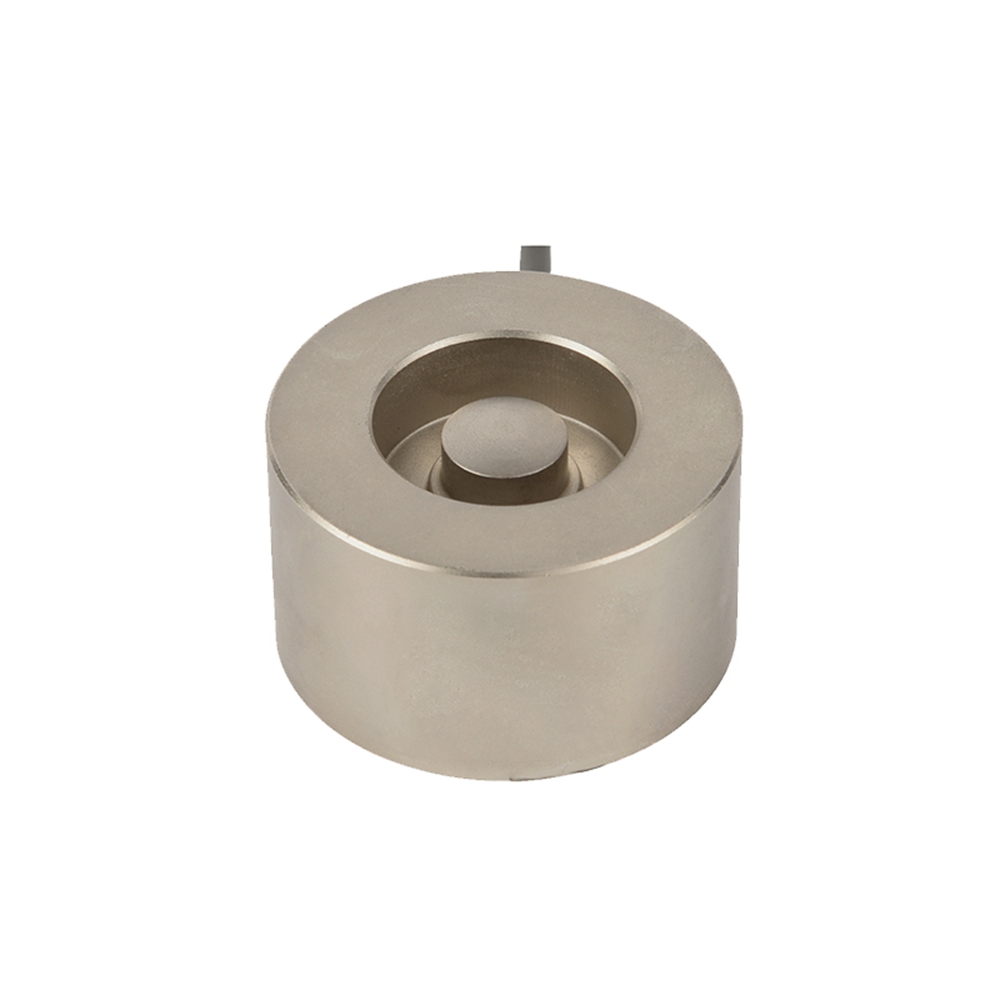

OS-203 Compression Load Cell

Torsion ring sensor


Inquiry

Rated Capacity: 0.5/1/2/3/5t

Accuracy Class: D1

Rated Output: 2.0±0.002 mV/V

Total error: ±0.05%F.S

Creep(30min): ±0.02%F.S

Input Resistance: 650±10Ω

Output Resistance: 610±2Ω

Operating Temperature: -10~+40℃

Safe Overload: 150%F.S

Destructive Load: 200%F.S

Excitation Recommend: 4~12VDC  Max:15VDC

Cable Length: 3m  4 wires with shield

Exc+(red) Exc-(black) Sig+(green) Sig-(white)

Construction: Alloy Steel or Stainless steel,IP67

Application for: Hopper scale,silo scale,weighing module etc.
